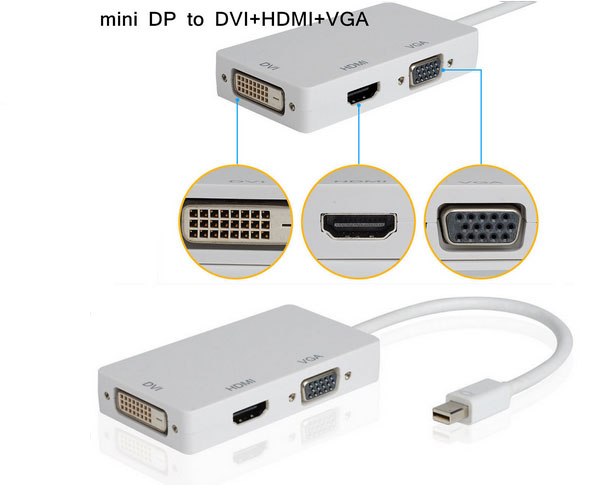

3 in 1 Thunderbolt Mini Displayport DP to VGA HDMI DVI Adapter Cable
for MacBook Pro MacBook Air
Product Description
Product Name: Mini dp to vga hdmi dvi adapter
Color: Polish White/black
Cable Length: Approx. 15cm.
Interface: Thunderbolt/ Mini DisplayPort Male to HDMI + DVI + Displayport Female.
Input Interface: Thunderbolt/ Mini DisplayPort Male 20pin.
Output Interface: HDMI Female 19 Pin and DVI Female (24+5) and VGA 20 Pin.
HDMI/DVI Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
HDMI/DVI Resolution: 1280*1024, 1360*768, 1920*1080, 1920 * 1200.
Operating Humidity: 10% to 85 % RH (Non Condensing )
Compatibiltiy: Apple iMac, Mac Mini, Mac Pro, MacBook Air, MacBook Pro 13 inch, MacBook Pro 15 inch, MacBook Pro 17 inch
Specification
| ITEM | Mini dp to vga hdmi dvi adapter |
| Input Signal: | Mini DisplayPort 1.1a |
| Output Video | HDMI/DVI/VGA |
| Input | Mini Display Port Male 20pin |
| Output | HDMI Female Type A 19pin DVI Female (24+5) VGA Female 15Pin |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.25Gbps/225MHz |
| HDMI/DVI/VGA | 480i/480p,576p,720p,1080i/1080p |
| External Power Supply | No external power needed |
| Power consumption (Max) | 700mW |
Feature
100% Brand New, Plug and Play.
Support conversion from Thunderbolt/ DisplayPort signal to DVI/ HDMI/ Displayport signal.
Support Thunderbolt/ DisplayPort highest video resolution 1920*1200.
Support HDMI/ DVI highest video resolution 1920*1080p.
Support HDMI/ DVI 225MHz/ 2.25Gbps per channel (6.75Gbps all channel) bandwidth
Support HDMI/ DVI 12bit per channel (36bit all channel) deep color.
Automatic monitor plug and unplug detect for DVI/ HDMI/ Displayport output.
Down Spread Spectrum Clock (SSC) support.
Powered from Mini DisplayPort source.
Connect your New Gerneration Macbooks/ Macbook Pro/ Macbook air to you display device with HDMI/ DVI/ Displaypor interface.
How to use:
The product is easily and conveniently use, with three output ports:DVI VGA HDMI and a Mini Display Port.And you can use one of them at a time as your demand, when you want to use the DVI output, you just need to connect the DVI devices using a DVI cable. And when you want to use the HDMI output, you just need to connect the
HDMI devices using a HDMI cable. When you want to use the VGA output, you just need yo connect the VGA devices using a VGA cable.The Mini Display Port meed to connect
Mac Book, Mac Book Pro, or Mac Book Air.
